Dive Rite CCR XT Wing
- Designed for CCR diving with {40 lb | 18.1 kg} of lift
- Made from rugged SuperFabric® XT material
- Donut-shape design provides excellent stability
- Gusset Control promotes effective streamlining
- Heavy-duty 210 denier nylon laminated bladder

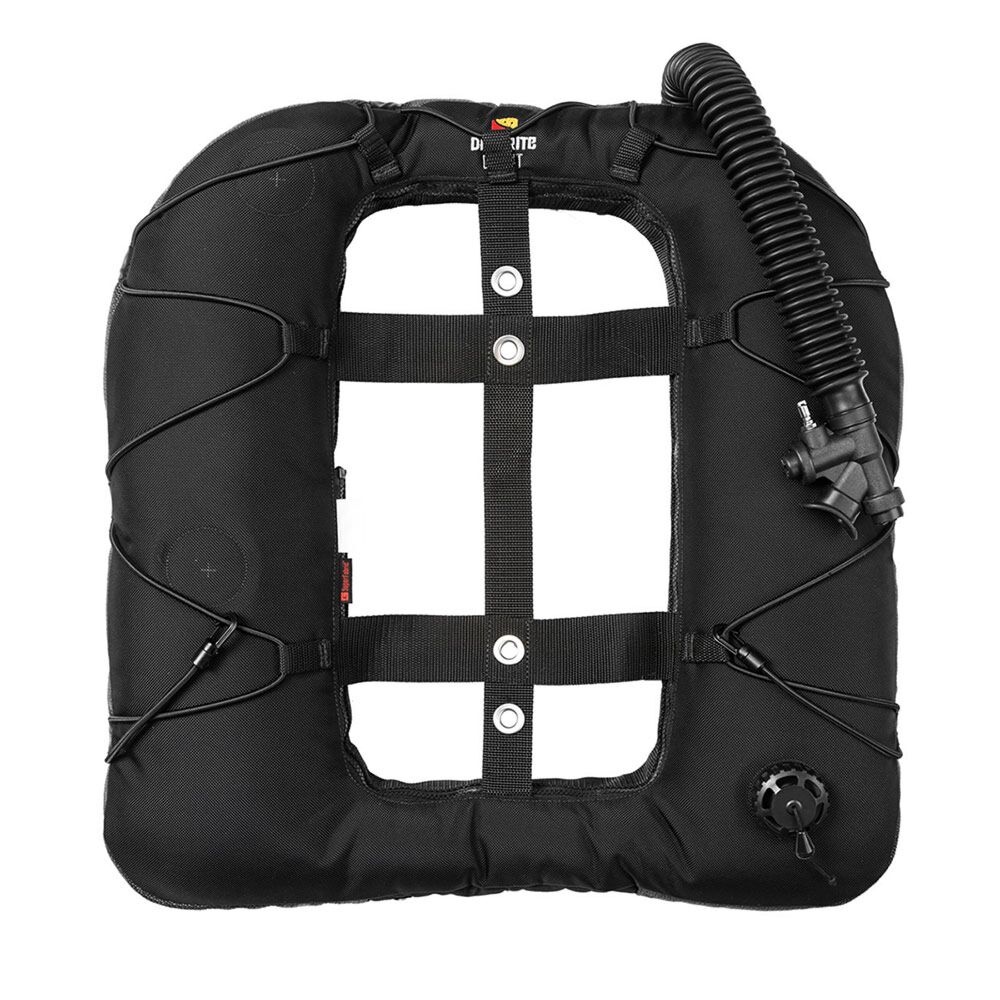

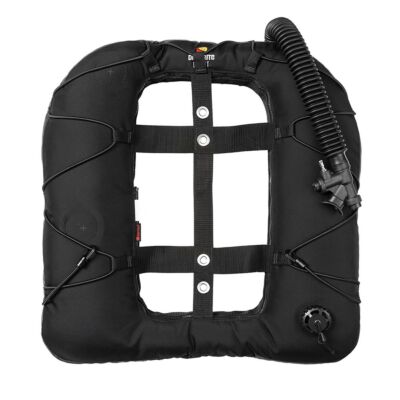

Dive Rite CCR XT Wing
The CCR XT Wing is designed for the rebreather diver looking to streamline rebreather hoses. The CCR wing offers an offset inflator hose that lies just to the outside of chest-mounted counterlungs. The open mid-section allows rebreather hoses to run through the middle of the wing, freeing up space behind the diver's head. This also means airflow is no longer restricted at the top of the wing due to hoses pressing down over the wing. The CCR XT wing is designed for use with a rebreather and is not for use with single tanks. Also available in a dual bladder version.

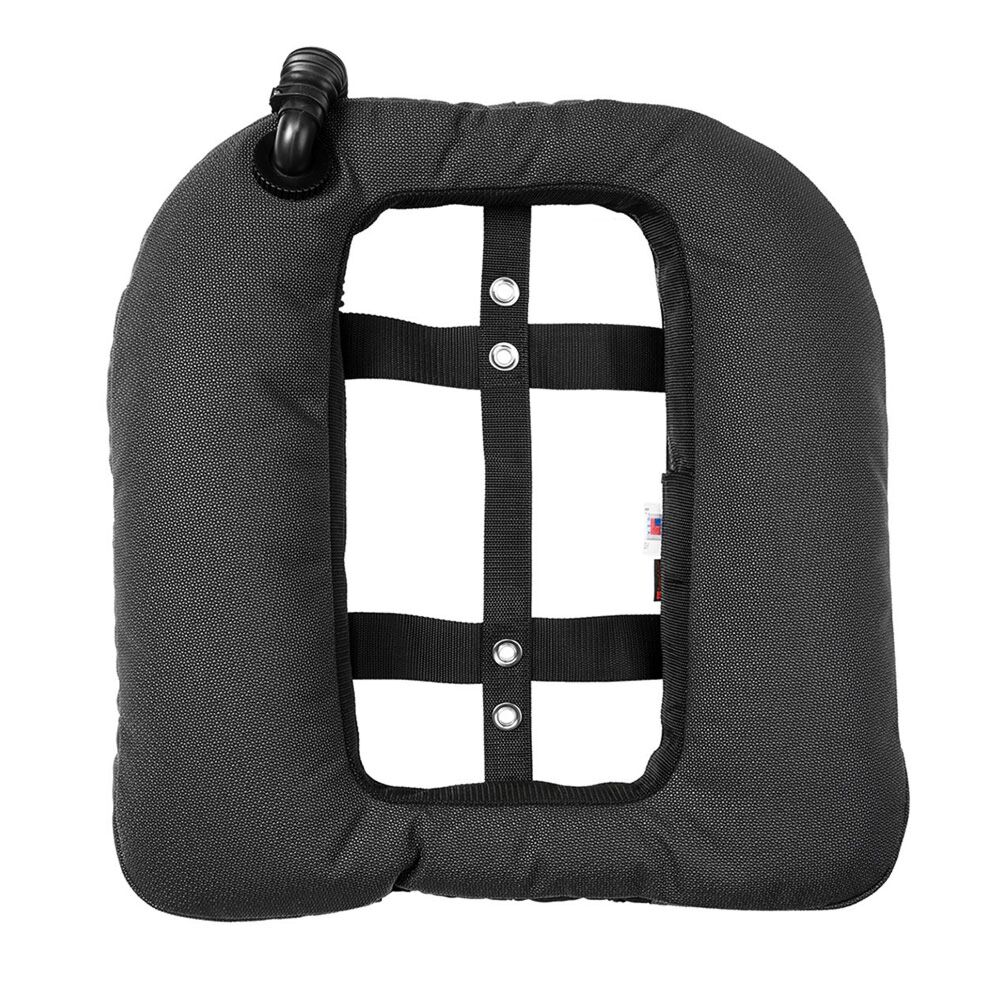

To allow a diver to set their trim more effectively, the BC 5500 CCR XT has two sets of marine-grade 316 stainless steel grommet mounting holes, which are used to attach the wing to a harness in two different positions. So, no matter what harness system or what rebreather is used, the wing can be positioned to maximize the diver’s trim in the water. The CCR Wing is an adjustable lift wing, sporting an optional Gusset Control System cord that can be used to further streamline the wing when needed, such as when carrying small bailout bottles. The GCS is not a bungee wing because it does not restrict air flow; instead the GCS promotes added streamlining and buoyancy control, while still allowing the wing to inflate to its full capacity.
The CCR Wing is built using rugged SuperFabric® brand technology XT material that creates an armor-clad outer shell that is impervious to damaging pinches and cuts, along with a 1680 ballistic nylon side panel. Inside the SuperFabric outer shell a heavy-duty, 210 denier nylon laminated bladder enhances the ruggedness and superior performance. The standard inflation assembly is a { 16 in | 40.6 cm } corrugated hose with a plain elbow and {22 in | 56 cm} low-pressure inflation hose, but if needed other inflation assembly configurations are available upon request.
CCR Approximate dimensions uninflated: {22 in H x 21 in W | 56 cm x 53 cm}Available in a single or dual bladder, the CCR Wing is designed for use with the TransPac, TransPlate or metal backplates.
| Brand | Dive Rite |
|---|---|
| SKU | DR-CCRXTWING |
| Weight | 5.000000 |
Customer Reviews
Dive Rite Air Cells Overview
Dive Rite's wings utilize either a 360 degree, donut-style bladder design that provides an even volume of inflation on top, sides and bottom, which improves buoyancy control and promotes a more efficient, horizontal trim, or the Retro style horseshoe design, allowing divers to target lift where it’s needed to balance out their rig and stay in trim. The heavy-duty 210 denier nylon laminated inner bladder is pinch and puncture resistant, chemical resistant and resists the growth of microorganisms. Each airtight inner bladder is surrounded by an outer fabric shell (available in two different versions) and an oral/power inflation assembly. The outer fabric shell protects the wing from tears and abrasion.
| Air Cell | EXP & XT Versions Available |
Test Lift |
Dual Version Available? |
Use with Singles? |
Use with Doubles? |
Gusset Control? |
| Travel Wing | YES (Both) | 25 lb | NO | YES | NO | NO |
| 11.3 kg | ||||||
| Voyager Wing | YES (Both) | 35 lb | NO | YES | NO | YES |
| 15.9 kg | ||||||
| Rec Wing | YES (Both) | 45 lb | YES | YES | YES | YES |
| 20.4 kg | ||||||
| Classic Wing | XT Only | 60 lb | YES | NO | YES | YES |
| 27.2 kg | ||||||
| Classic Retro Wing | EXP Only | 40 lb | NO | NO | YES | NO |
| 18.1 kg | ||||||
| Classic Retro Wing | EXP Only | 55 lb | NO | NO | YES | NO |
| 24.9 kg | ||||||
| CCR Wing | XT Only | 40 lb | YES | NO | YES | YES |
| 18.1 kg | ||||||
| Nomad Wing | XT Only | 50 lb | YES | YES | ||
| 27.0 kg |
EXP versions - The EXP series wings have an outer fabric shell made of tough 1680 denier ballistic nylon. The EXP wings are available in black with gray side panels. EXP series wings feature a one year warranty.
XT versions - The XT series outer fabric shell, built upon the legendary toughness of SuperFabric® brand technology, is outstandingly rugged. SuperFabric is a technical fabric resistant to cuts and abrasion. Created with a base fabric and then overlaid with tiny guard plates, this proprietary armored surface, along with material science and strategic geometric patterns, transform ordinary fabric into SuperFabric brand materials. Spacings between the guard plates allow for flexibility and breathability, yet are small enough to keep sharp objects from penetrating. Dive Rite's XT Armored wings have the durability of SuperFabric outer side with a 1000 denier Cordura® inner side to create an armor-clad shell that is impervious to damaging pinches, cuts and abrasions. The Dive Rite XT wings feature a LIFETIME GUARANTEE.
Lift Capacity - A very common error when selecting a wing is to choose a size much too big, causing a "taco effect" that makes managing buoyancy considerably more difficult. The cylinder size, type and configuration, not lift capacity, is the best guide to selecting the correct wing.
For details read Suggestions for Selecting a Wing.
Inflation Assemblies - Configurations are available with a pull-to-dump remote exhaust elbow for sport diving applications that favor ease of use, or a plain elbow for technical diving applications that favor simplicity. Most divers prefer the { 16 in | 40.6 cm } corrugated hose with a { 22 in | 55.9 cm } low pressure BC inflator hose. But, some technical divers seeking ultra-streamlined configurations prefer the { 12 in | 30.5 cm } corrugated hose and { 15 in | 38.1 cm } low pressure BC inflator hose; especially on doubles.
Singles & Doubles Wings - While the Rec wing design can be adjusted for occasional use with singles, keep in mind they are not designed to be used primarily as singles wings and they are not optimal with singles. Realistically, there is no wing perfect for both singles and doubles, or even a wing perfect for all doubles. If the range of cylinder configurations which you dive is broad, then the best choice for efficient and comfortable diving may be to own more than one wing.

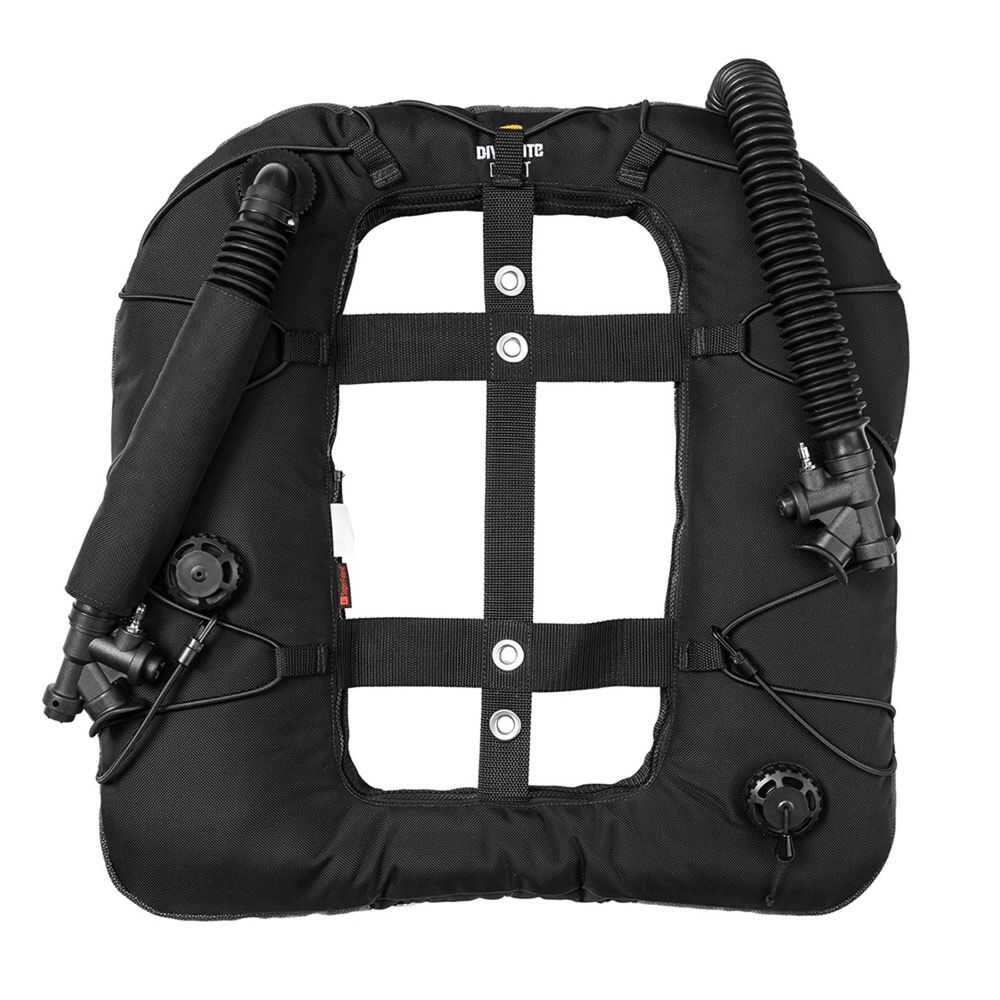

Dual versions - The dual bladder wings offer the same versatility and lift capacity of the single bladder wings, but also incorporate two bladders to provide back-up inflation. The dual option is ideal for technical divers who dive wet and do not have a drysuit as alternate buoyancy. Or, for any diver who want to ensure their backup buoyancy has the same lift capacity as their primary.
Gusset Control System - The GCS is used to streamline the shape of the Dive Rite wings to keep the excess of these larger wings from wrapping around the cylinders or "flapping." The GCS does not create a bungee wing because it does not restrict air flow; instead the GCS promotes added streamlining and buoyancy control, yet allows the wing to full inflate to its full capacity. The GCS can be disabled by moving two clips to release all tension on the cord, allowing the wings to fully inflate without any retraction effect from the GCS. For those who prefer not to use the Gusset Control System, the cord may be removed entirely. For details read Dive Rites' Gusset Control System (GCS).
