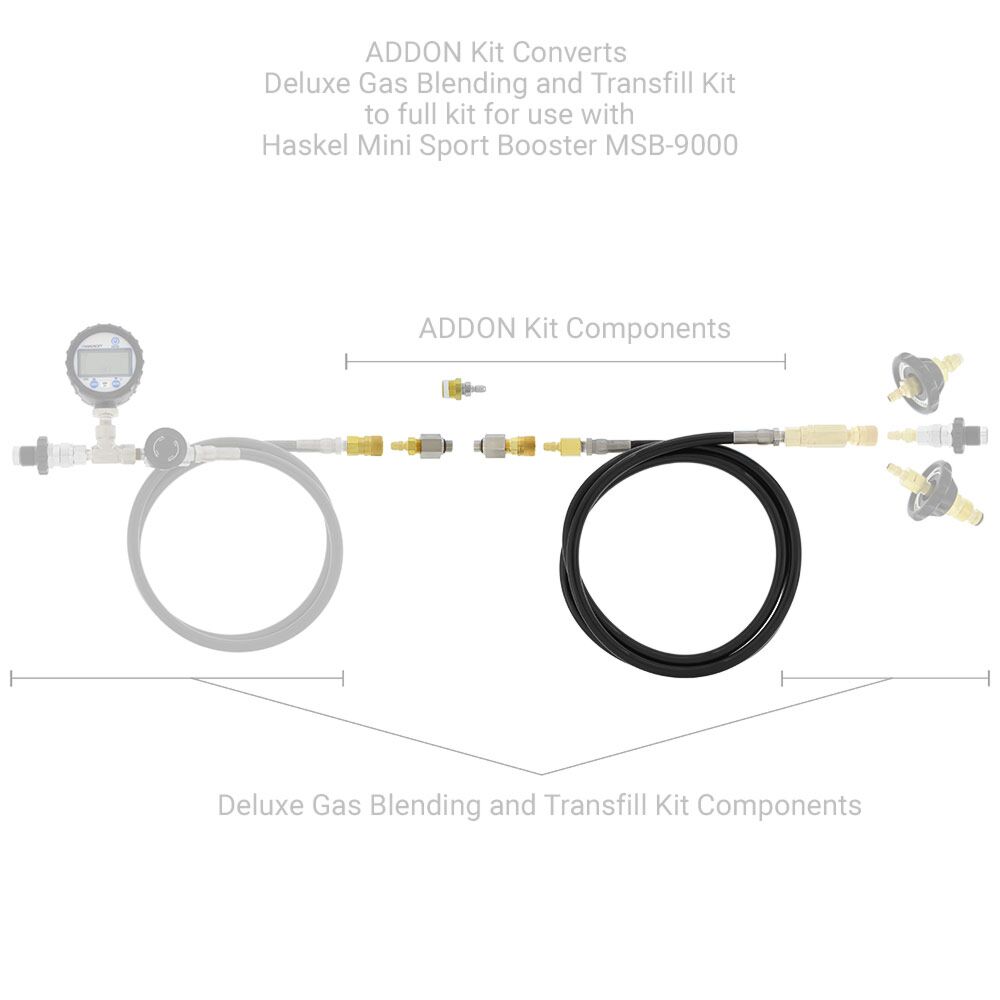

If you already own our standalone DGX Gears Deluxe Gas Blending and Transfill Kit with Digital Gauge then you can add these five components to reconfigure the blending kit in to a full DGX Gears Deluxe Fitting and Hose Kit for boosters. If you do NOT already own the DGX Gears Deluxe Gas Blending and Transfill Kit with Digital Gauge there is no benefit to purchasing this ADD-ON, instead you should purchase the complete DGX Gears Deluxe Fitting and Hose Kit.

The Haskel kit version includes the SAE/UNF 9/16"-18 input/output and NPT 1/2"-14 drive gas quick connect fittings & adapters for the HK-9000 booster. The DGX Gears kit version includes the NPT 1/4"-18 input/output and PT/BSPT 3/8"-19 drive gas quick connect fittings and adapters for our X-30 booster.

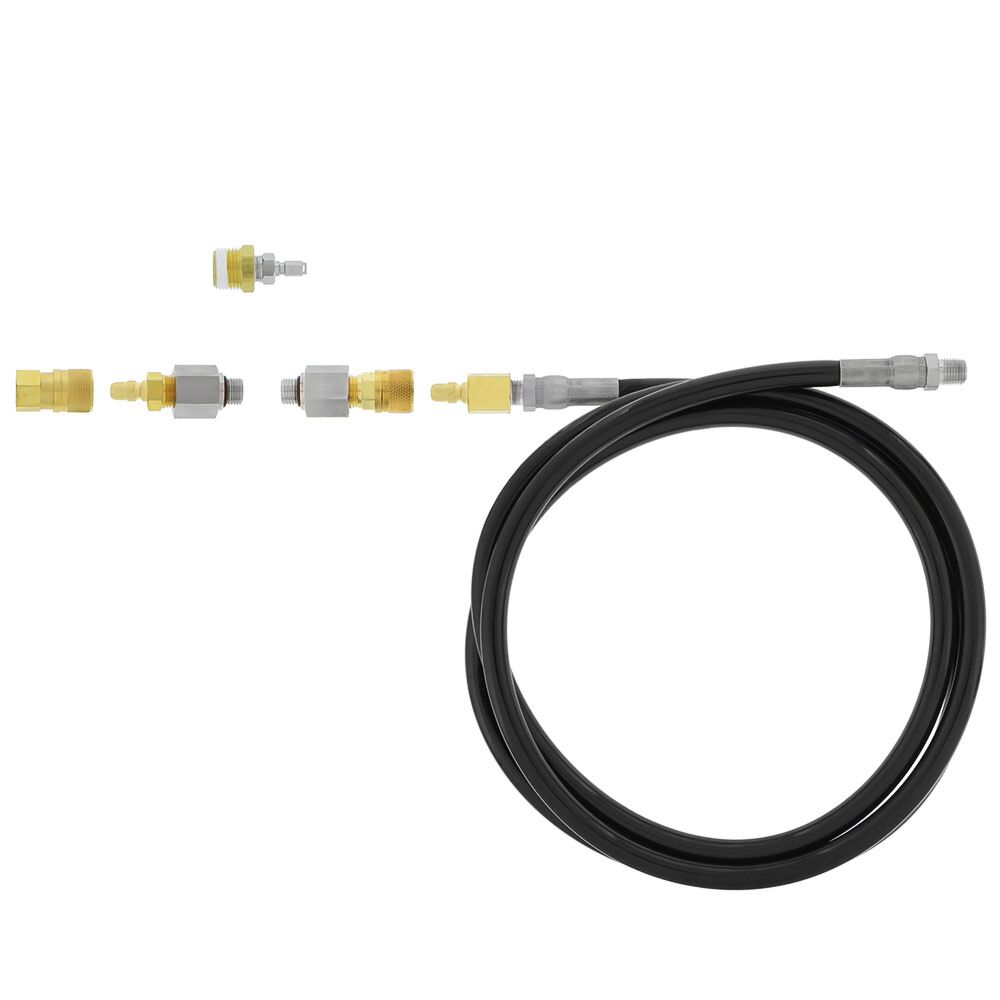

The supply side { 96 in | 2.4 m } inlet hose is long enough to reach even the tallest supply cylinders. The kit contains a plain quick connect to reconfigure the blending kit hose to replace the check valve quick connect assembly. The check valve quick connect assembly must be moved from the blending kit hose to the supply side inlet hose in this kit. The kit also contains a standard BC quick-connect fitting for the drive gas, and two quick connect fittings for the inlet and outlets on the booster. Note this kit is NOT a complete solution, you must already own the matching standalone Deluxe blending kit with the digital gauge in order to make use of this kit.

IMPORTANT: You must move the existing check valve quick-connect assembly fitting on your existing blending kit hose to the supply side inlet hose included with this kit. A replacement female quick-connect only fitting is included for the existing blending kit hose. DO NOT install the replacement female quick-connect fitting on the supply side inlet hose. If you don't reconfigure the hoses, then the check-valve would remain downstream of the booster and may cause unexpected issues. Just to be clear, you will need to REMOVE the check valve from your existing blending kit hose and move it to the supply side inlet hose included in this kit.
