Replacing both octopus and BC power-inflator, this DGX Custom package is configured with a BCI regulator that allows the diver to breathe normally as from any second stage, yet the diver can simultaneously and rapidly inflate the BC, as well as deflate or orally inflate, as you would on any standard inflator mechanism.

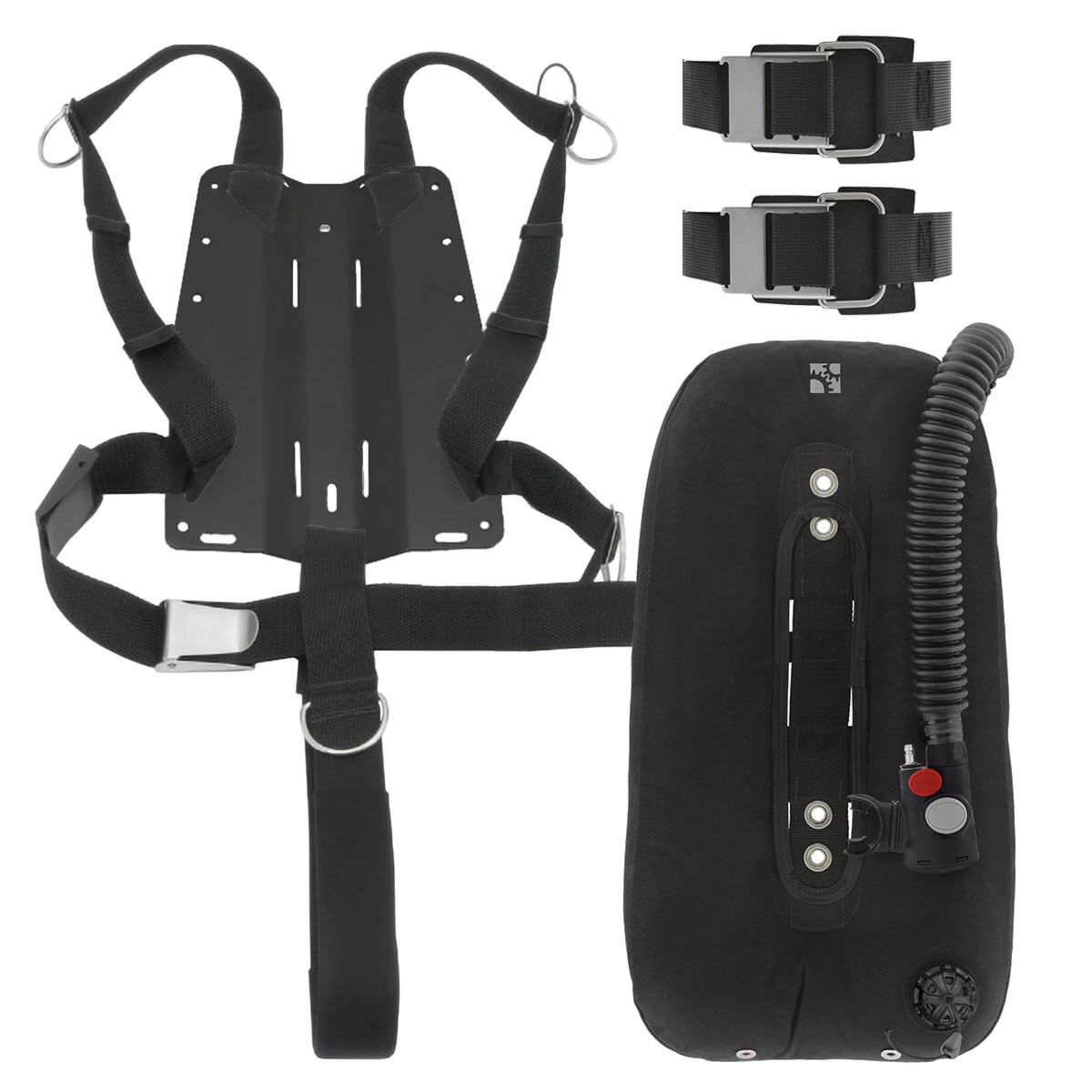

The fully integrated BCD uses a DGX Gears (S1) Wing together with a DGX premium quality metal backplate, harness webbing, padded crotch strap, stainless steel hardware, DGX tank straps with Stainless Steel hardware and other accessories. The Streamlined Openwater Regulator for single tank divers includes a DGX Gears D6 DIN first stage and DGX Gears D6 second stage plus a DGX Gears BC Integrated Backup second stage together with our DGX premium accessories. The package comes configured with your choice of DGX premium double braided flex or rubber hoses and also includes a DIN-to-Yoke spin-on adapter, a DIN regulator cap, and is Nitrox Ready.

Included with this Package:

• DGX Gears (S1) { 30 lb | 13.6 kg } Single Tank Wing
• Wing includes a { 16 in | 41 cm } Corrugated Hose with a Plain Elbow Assembly
• DGX Gears BC Integrated Backup Regulator installed on your wing corrugated hose

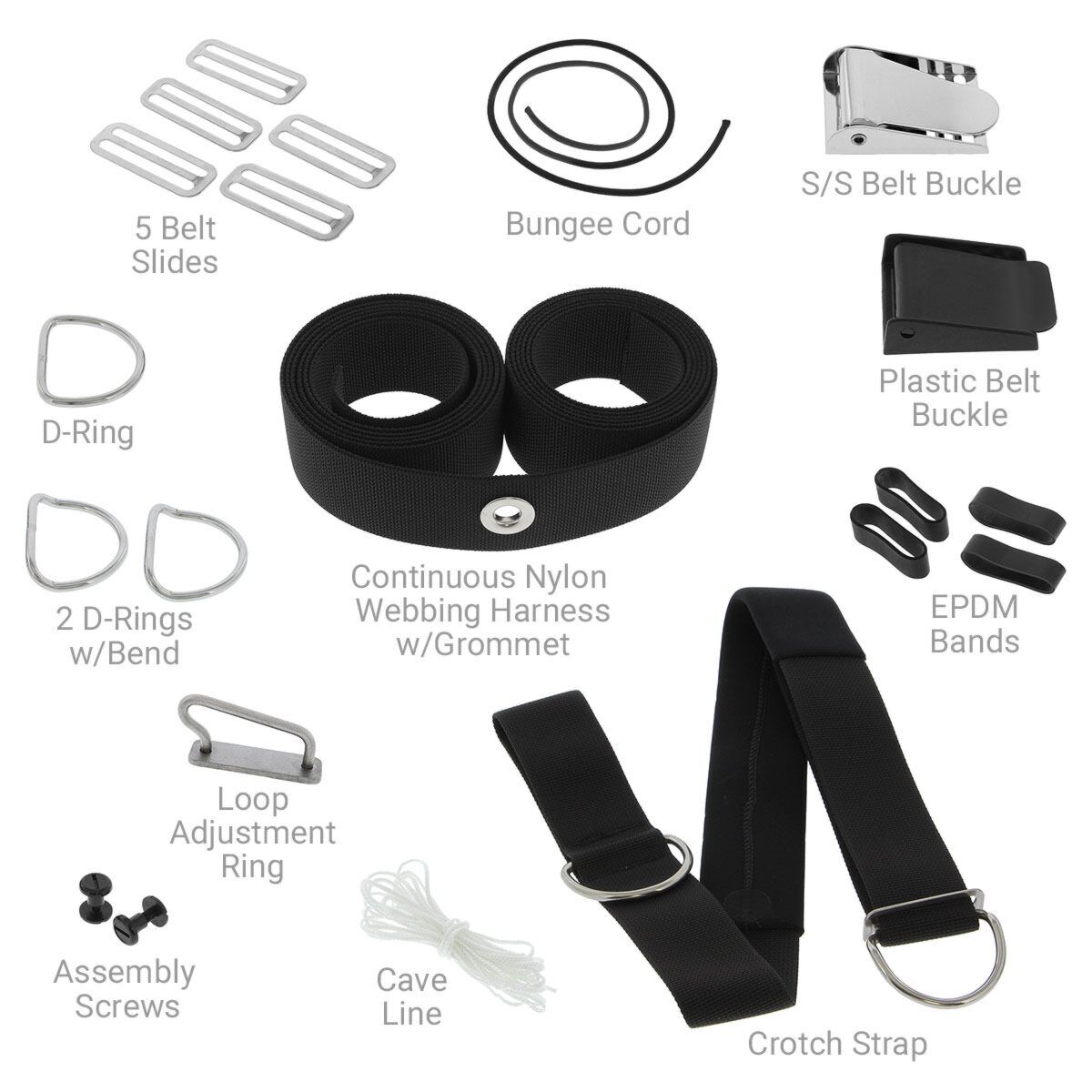

• DGX Gears Harness with all S/S hardware
• Your choice of crotch strap with the harness:
  • The popular {1.5 in | 3.8 cm} Crotch Strap is noticeably more comfortable and with a side-release buckle is a welcome change from outdated traditions to the convenience of a crotch strap that can be adjusted on-the-fly. The {1.5 in | 3.8 cm} crotch strap uses a soft nylon webbing that measures {38 in | 97 cm} in length with a {2,200 lbs | 1,000 kg} tensile strength and weighs {3 oz | 85 g}.
  • The traditional {2 in | 5 cm| Crotch Strap has a sewn-loop and includes a neoprene sleeve to protect exposure suit from abrasion. The {2 in | 5 cm} nylon webbing crotch strap measures {42 in| 107 cm}in length, with {2,800 lbs | 1,270 kg} tensile strength and weighs {6oz |170g}.
• Select DGX Aluminum OR upgrade to Stainless Steel Backplate
• DGX Tank Straps with Stainless Steel hardware
• DGX Plastic Assembly Screws (2)

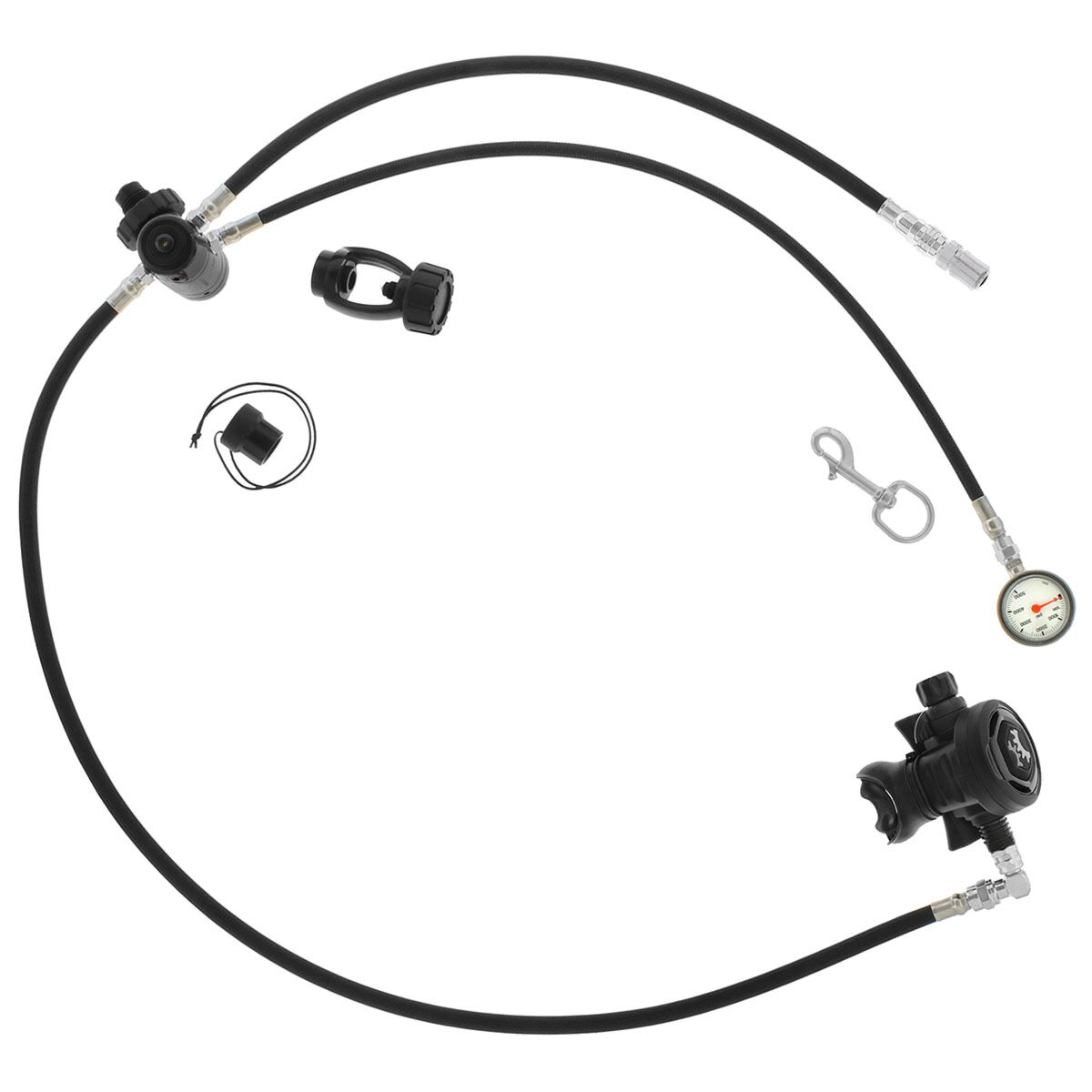

• One DGX Gears D6 First Stage and one DGX Gears D6 Second Stage
• One { 40 in | 1.0 m } Reg Hose for the primary
• One { 22 in | 56 cm } Reg Hose with quick-connect adapter for the BCI
• One "Thin" SPG with { 26 in | 66 cm } HP Hose
• DIN to Yoke Spin-On Adapter, Necklace, S/S Bolt Snap, DIN Cap

This rig can accommodate the typical Aluminum 80 or Steel LP-85, HP-80 or HP-100 tanks. Includes Aluminum backplate or upgrade to Stainless Steel, upgrade to add weight pockets or shoulder pads.

The DGX Single Tank Wing features a narrow low profile design with a lift capacity of { 30 lb | 13.6 kg } and includes a { 16 in | 41 cm } corrugated hose with a plain elbow. The two tank strap slot design allows for a more secure tank attachment option of using two (2) cam straps. It is constructed from durable 1000 Denier nylon outer shell material and further enhanced with a heavy-duty urethane coated 200 Denier nylon laminated bladder.

All hoses for the regulator are in your choice of braided flex or rubber. The primary second stage is on a { 40 in | 1.0 m } hose with an underarm swivel. The thin SPG, in your choice of whiteface or blackface, and PSI or BAR, is on a { 26 in | 66 cm } HP hose with a S/S snap, and a { 22 in | 57 cm } regulator hose with quick connect adapter for the BCI second stage is also included. The package comes completely assembled by Dive Gear Express with our premium accessories and is ready to dive anywhere in the world.

The DGX Gears D6 First Stage is a balanced diaphragm design featuring five standard size low pressure 3/8-inch ports on a swiveling turret, and two standard size high pressure 7/16-inch ports. The first stage is environmentally sealed for cold water performance, and comes standard with a 300-BAR DIN connector.

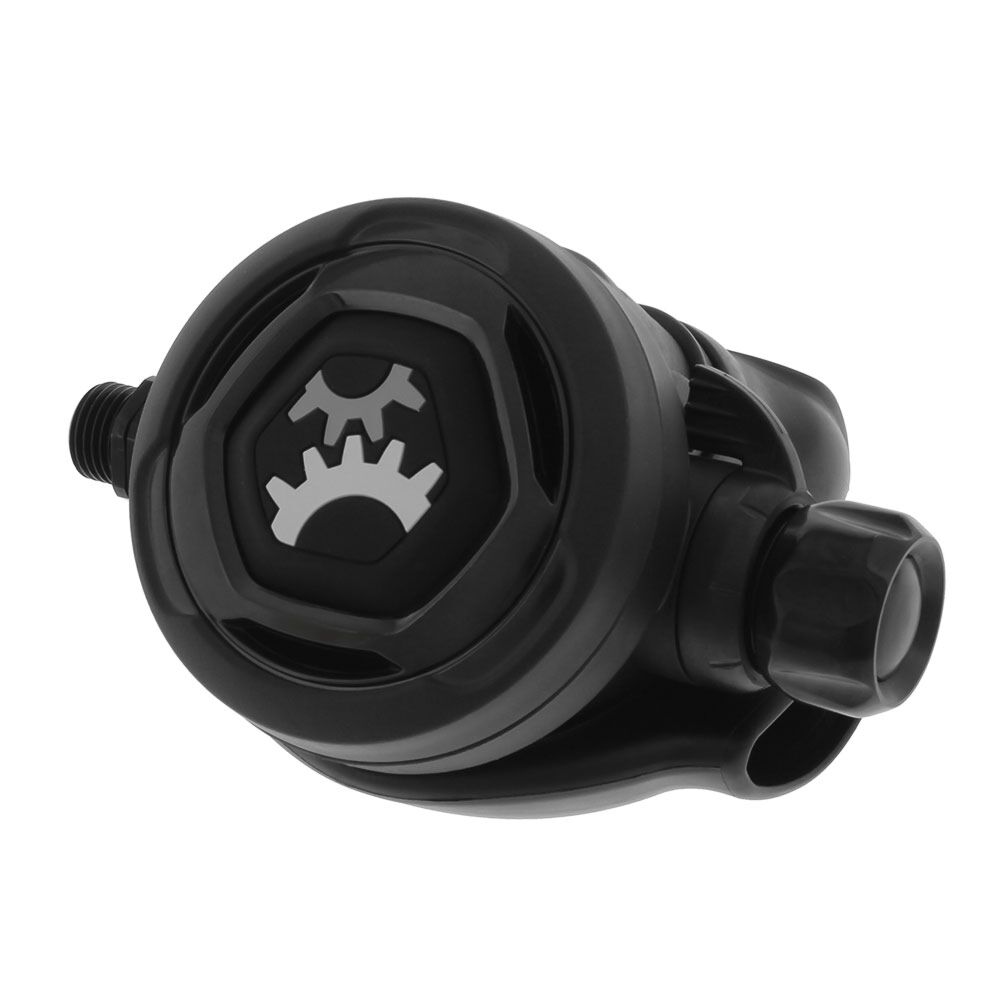

The DGX Gears D6 Second Stage is pneumatically balanced for excellent breathing at any depth. Internally it contains a chrome plated brass air barrel for performance and durability. The black soft touch silicone front cover allows for easy purge. A user adjustable breathing resistance knob is also featured, with a venturi (Dive / Pre-Dive) switch for better flow control when needed and to reduce free flow upon initial entry.

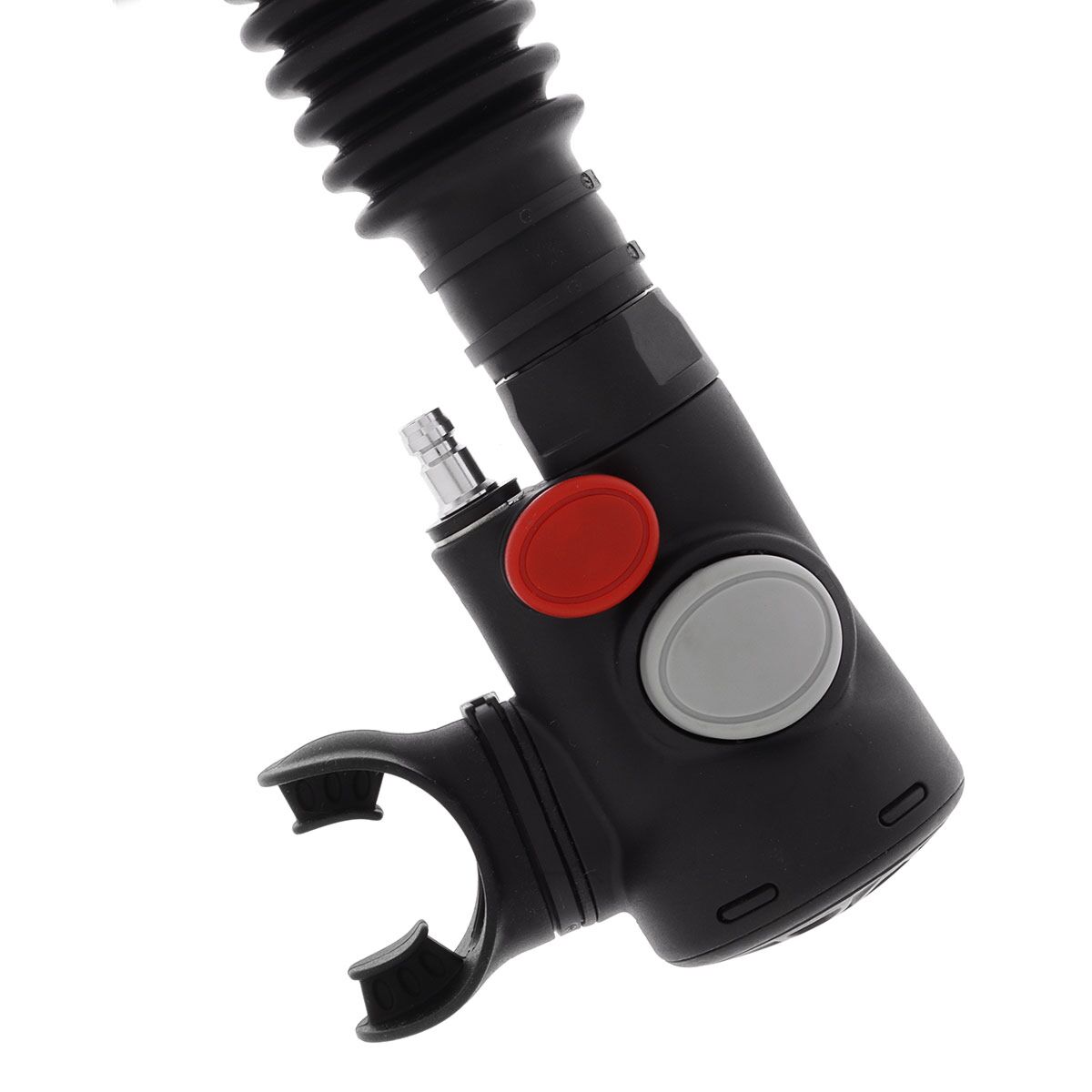

The ultimate tool for streamlining, your DGX backplate/wing/harness package with D6 regulator is configured with our DGX Gears BC Integrated Backup Regulator. The breathable inflator replaces the standard K-style inflator, combining an alternate air source with a power-inflator. The DGX Gears BC Integrated Backup Regulator will be installed on the corrugated inflator hose and is fed by the first stage in the same manner as any regulator. It is supplied with a hi-flow quick coupling adapter together with an included low-pressure flex regulator hose that also supplies the power-inflator - thus eliminating the traditional long hose and dangling octopus regulator that is a hassle. The advantage of using a high-flow QD adapter with an ordinary low-pressure regulator hose is that should the hose later need to be replaced due to age or damage, you do not have to source a hose with a specialized QD fitting.

• Large, shape and color differentiated buttons are easy-to-use, even with gloves.
• The easy purge cover is located on the bottom of the unit so it will not be affected by strong currents.
• Downstream demand valve with venturi assist for performance and reliability at any sport diving depth.
• Includes inlet protective cap to keep out water and particulates.
• The screw-on corrugated hose nipple makes the entire second stage easily detachable from the wing.
• Proven design meets the requirements of EN250 for an auxiliary emergency breathing device integrated with a buoyancy inflation system.

Ready to dive, we install the DGX Gears BC Integrated Backup Regulator on your wing corrugated hose along with the QD push-on adapter and LP hose on your XTRA regulator.

Sorry, but at this low price we are unable to make any substitutions.

The DGX custom webbing harness systems do NOT come assembled as your personal sizing for the harness must be done during assembly.

DGX Gears Harness Assembly Instructions

Our recommended service interval is every two years or one hundred dives. There is nothing unique about the DGX regulators in terms of service requirements and needs no special tools beyond those generic tools found on the typical regulator technicians bench. We sell the DGX Gears regulator service parts kits direct to the public.
