DGX Custom - DGX Gears D6 Single Tank Reg Package
- Complete high performance hogarthian single tank configuration
- Assembled, tested and shipped to you ready-to-dive
- Choose braided flex or rubber hoses
- Salt, Fresh, Warm or Cold Water and Nitrox Ready
- DIN or Yoke - dive anywhere in the world
DGX Custom - DGX Gears D6 Single Tank Reg Package
Everything you need for a high performance regulator setup in a Hogarthian single tank configuration. The package, using DGX Gears D6 regulators, is completely assembled by Dive Gear Express.

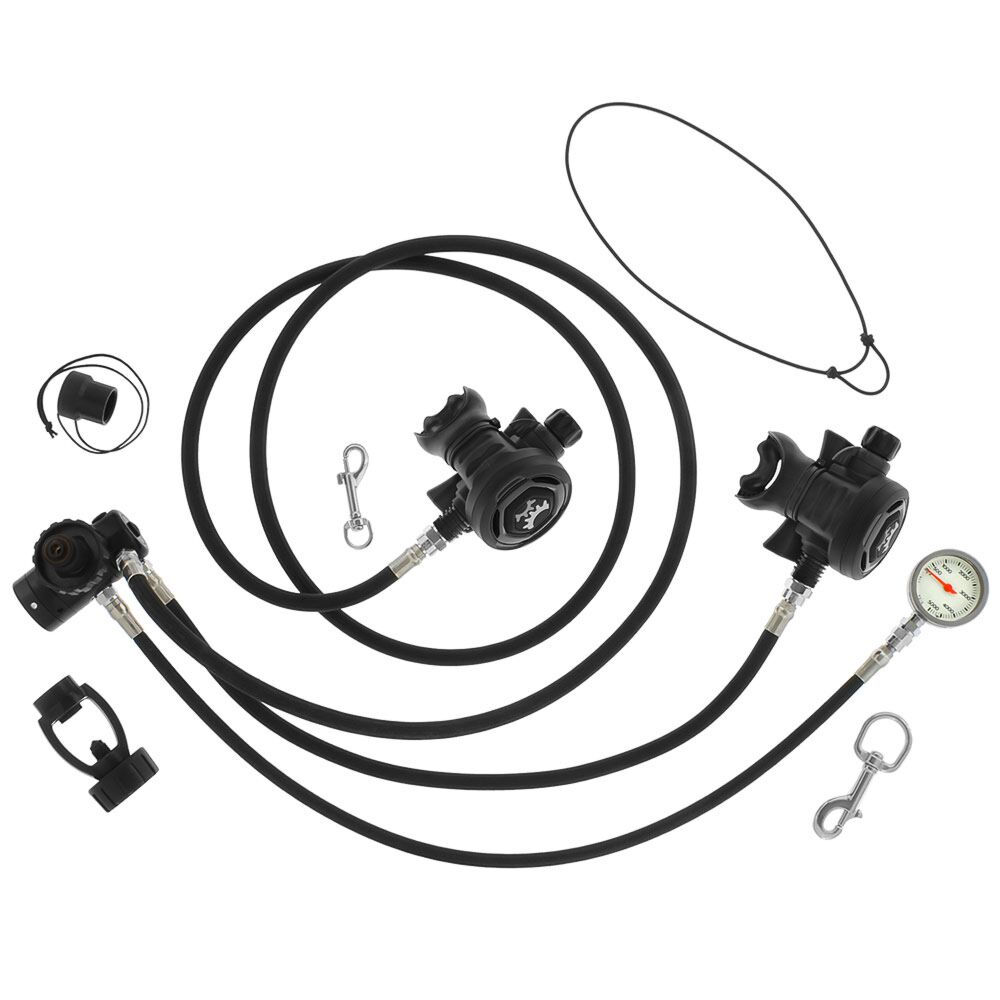

Included with this Package:
- One DGX Gears D6 First Stage and two DGX Gears D6 Second Stages
- One { 60 in | 1.5 m } or { 84 in | 2.1 m } Reg Hose for the primary
- One { 22 in | 56 cm } Reg Hose for the secondary
- One "Brass and Glass" SPG with { 26 in | 66 cm } HP Hose
- DIN-to-Yoke Spin-On Adapter, Necklace, S/S Bolt Snap, DIN Cap
- Optionally add a BC Inflator Hose or use the one that comes with your BC

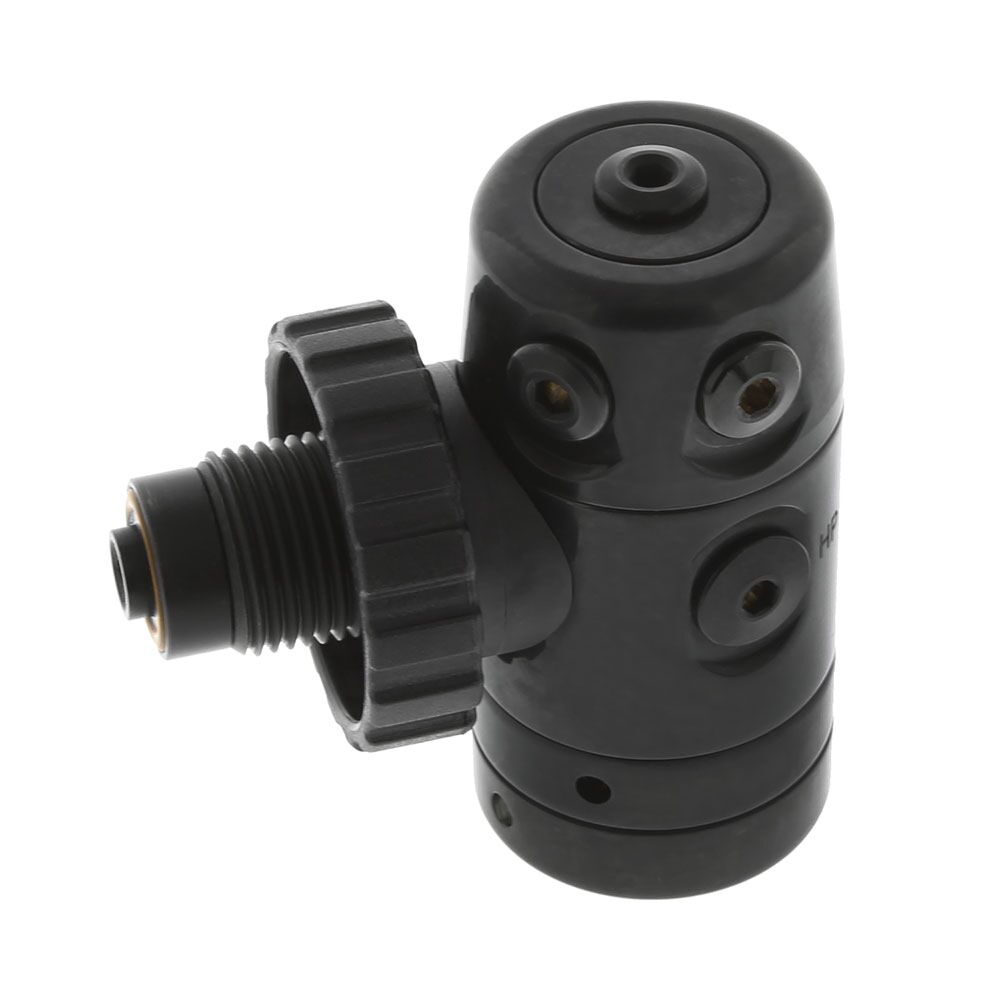

The DGX Gears D6 First Stage is a balanced diaphragm design featuring five standard size low pressure 3/8-inch ports on a swiveling turret, and two standard size high pressure 7/16-inch ports. The first stage is environmentally sealed for cold water performance, comes standard with a 300-BAR DIN connector, and is Nitrox Ready.

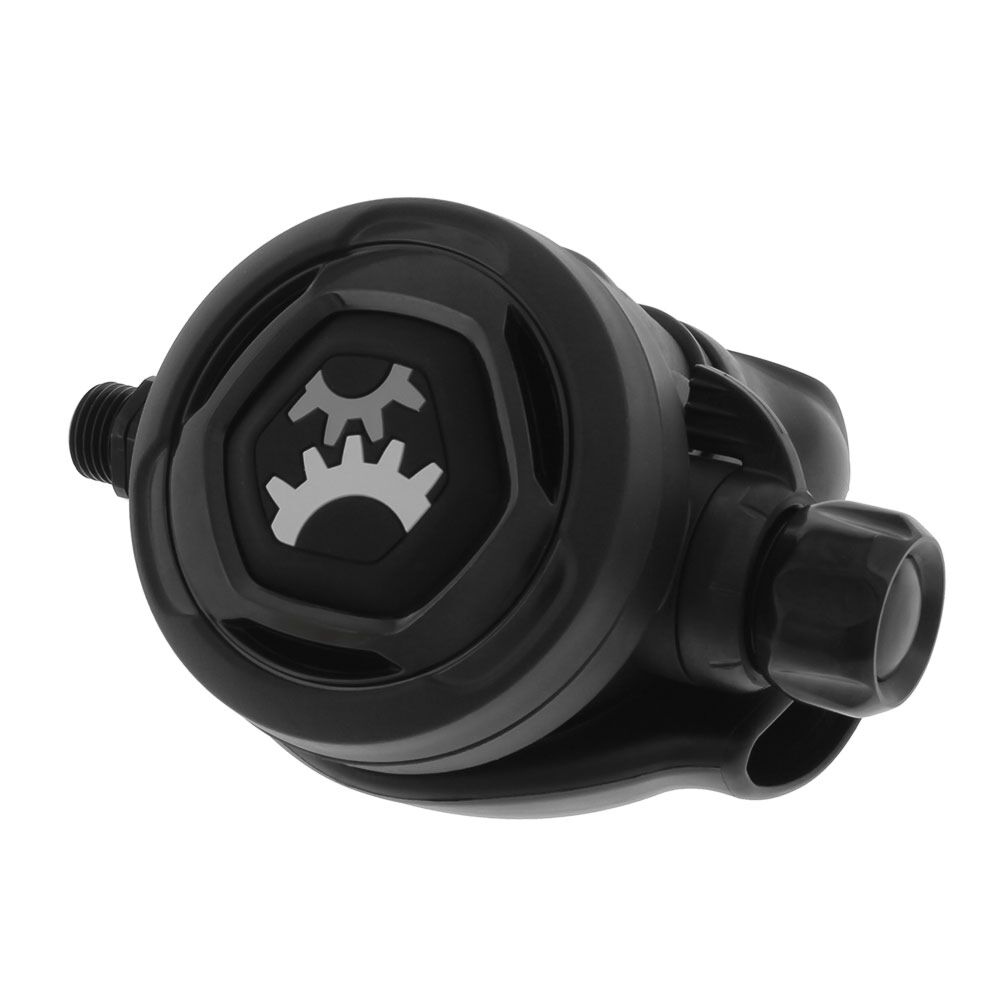

The DGX Gears D6 second stage is pneumatically balanced for excellent breathing at any depth. Internally it contains a chrome plated brass air barrel for performance and durability. The black soft touch silicone front cover for easy purge and along with a user adjustable breathing resistance knob. It also offers the Venturi Dive / Pre-Dive switch for better flow control when needed and to reduce free flow upon initial entry.
Our recommended service interval is every two years or one hundred dives. There is nothing unique about the DGX regulators in terms of service requirements and needs no special tools beyond those generic tools found on the typical regulator technicians bench. We sell the DGX Gears D6 service parts kits direct to the public.
| Brand | DGX Gears |
|---|---|
| SKU | PK-741006 |
| Weight | 7.500000 |
Customer Reviews
YOU MAY ALSO BE INTERESTED IN THE FOLLOWING PRODUCT(S)
How Long is Your Hose?
Dive Gear Express offers regulator configurations that are suitable for hogarthian (aka 'DIR') style diving. A subset of our other regulator packages, the design of the second stages in these selected packages allows the cover to be removed and replaced underwater in order to clear silt or debris, a hogarthian requirement. True hogarthian or not, all of these DGX Custom regulator packages are already configured for hogarthian hose routing to eliminate bowing and dangling hoses. You get the correct length hoses and there is no extra 'hose kit' to buy, making these packages an even better value.
Hogarthian hose routing for doubles yields 'standard' hose lengths that work most divers, but not everyone. Nearly all overhead divers with doubles use a standard { 84 in | 2.1 m } LP hose but a few open water divers use a shorter { 60 | 1.5 m } LP hose for their primary second stage, and both put the backup second stage on a { 22 in | 56 cm} LP hose hung on a necklace directly below their chin. Most doubles divers use a standard {24 in 61| cm} HP hose for their pressure gauge, but some divers (either diving singles or who like to hold their gauge a little further away for reading) prefer a slightly longer {26 in | 66 cm} HP hose. Most divers select a standard {22 in | 56 cm} BC power inflator hose, but a few divers prefer to have the power inflator rest very high on their shoulder and use a shorter {18 in | 46 cm} BC hose. Our configuration tool allows you to build a regulator package to your specifications.
